TH-FLC200SL JPT【FOB】Automated Fiber Pulse Laser Cleaner | Programmable & Consistent Surface Cleaning

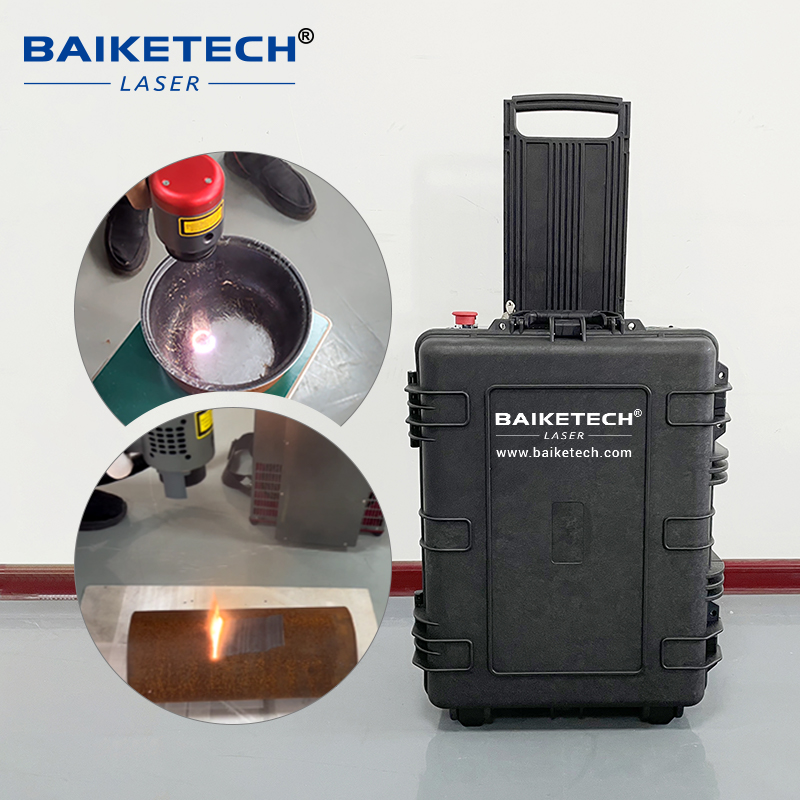

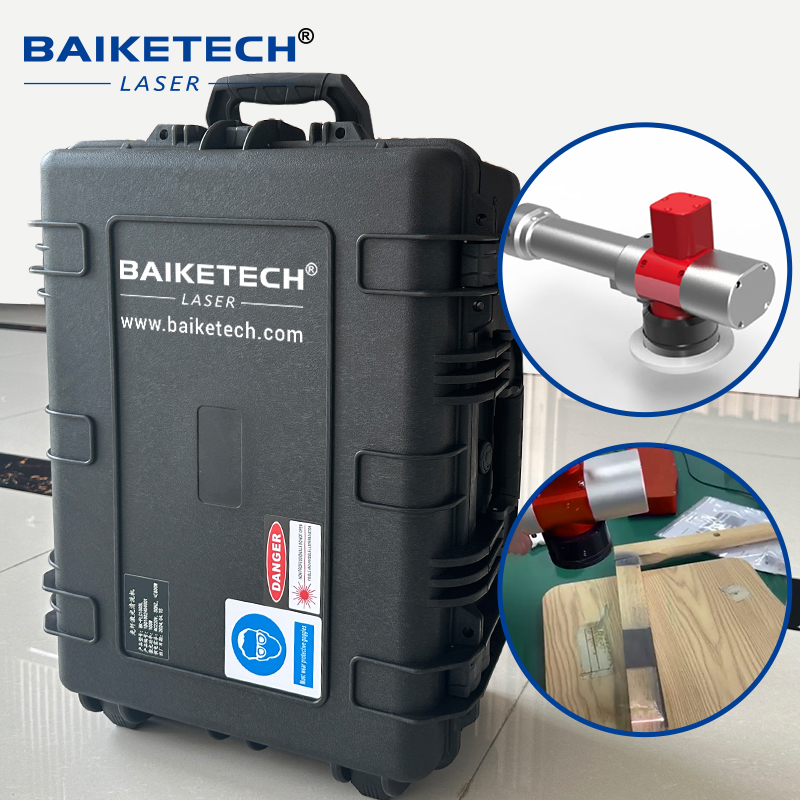

Baiketech TH-FLC200SL 200W JPT Trolley Box Pulsed Laser Cleaning Machine |
|

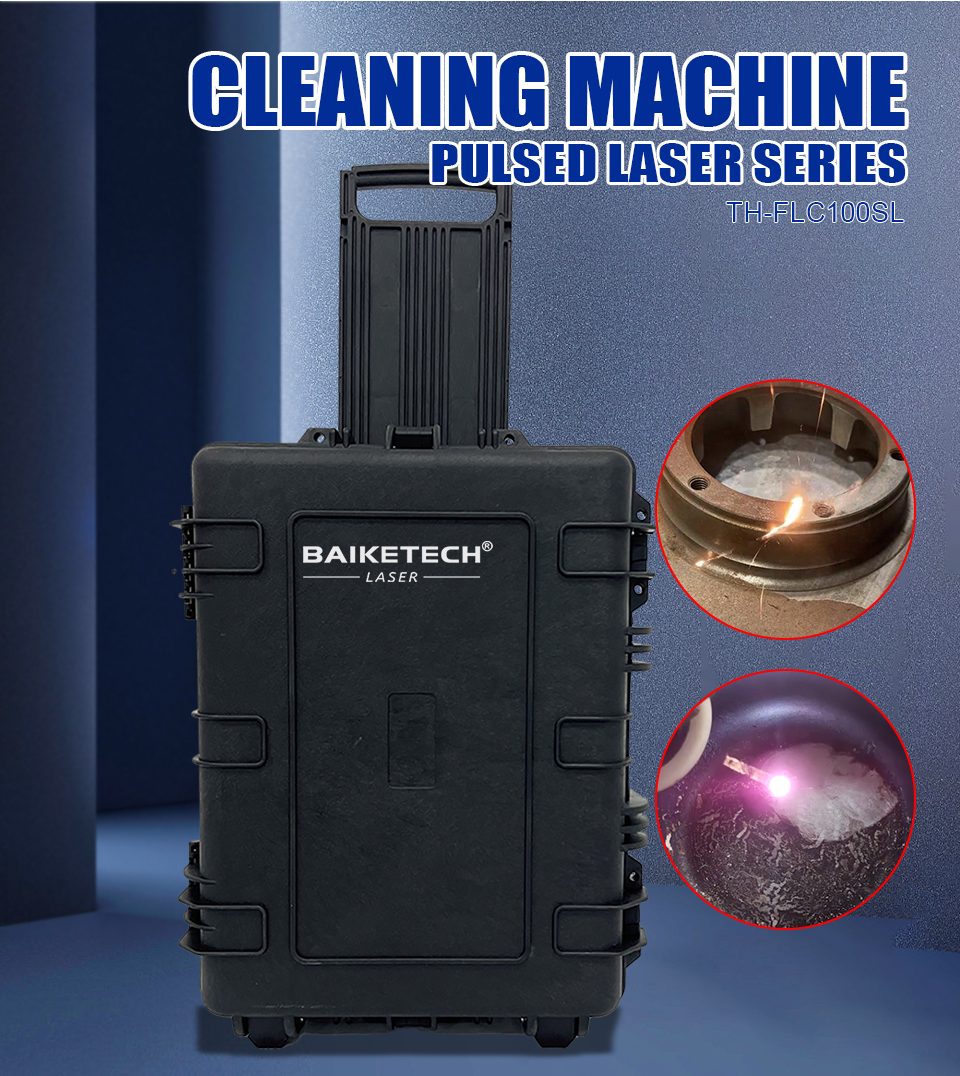

Portable handheld laser cleaning machine Pulsed portable laser cleaning machine is a new technology based on the interaction between laser and substance, which can achieve the effect of removing surface pollution and attach-ments. Compared twith traditional cleaning methods, laser cleaning has theadvantages of non-contact, no damage to the substrate, accurate cleaning,"green" environmental protection and online, especially suitable for high-speedonline cleaning in designated areas. |
 |
 |
| Key Features |
- Non-contact cleaning without damaging the matrix of the parts;
- Accurate cleaning, can achieve precise position, accurate size selective cleaning;
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
- Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
- Ergonomics design, operating labor intensity greatly reduced;
- Trolley design, with its own moving wheel, easy to move; High cleaning efficiency, save time;
- Laser cleaning system is stable with little maintenance
| Technical Parameters |
| Operating environment | |
| Content | TH-FLC200SL 200w pulse laser cleaning machine |
| Supply voltage | Single phase220V± 10% 、50/60Hz AC |
| Power consumption | ≤1500W |
| Working environment temperature | 5℃~40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥200W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 13-500ns |
| Maximum monopulse energy | 2mJ |
| Power regulation range (%) | 0- 100( Gradient Adjustable) |
| Repeat frequency (kHz) | 1-3000 (Gradient Adjustable ) |
| Fiber length | 5m |
| Cooling mode | Air cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | 0mm- 100mm, continuously adjustable; supporting 8 scanning modes |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length (mm) | 210mm ( Optional 160mm/254mm/330mm/420mm) |
| Depth of focus | About 5 mm |
| Mechanical parameters | |
| Machine size (Length, width and height) | About 617mm*469mm*291mm |
| Size after packing (Length, width and height) | About 950mm*580mm*500mm |
| Machine Weight | About 30Kg |
| Weight after packing | About 50Kg |
| Cleaning head weight (including isolator) | ＜0.75Kg |
| Mode of operation | Handheld/automated |
| Languages | Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc |
 |
|

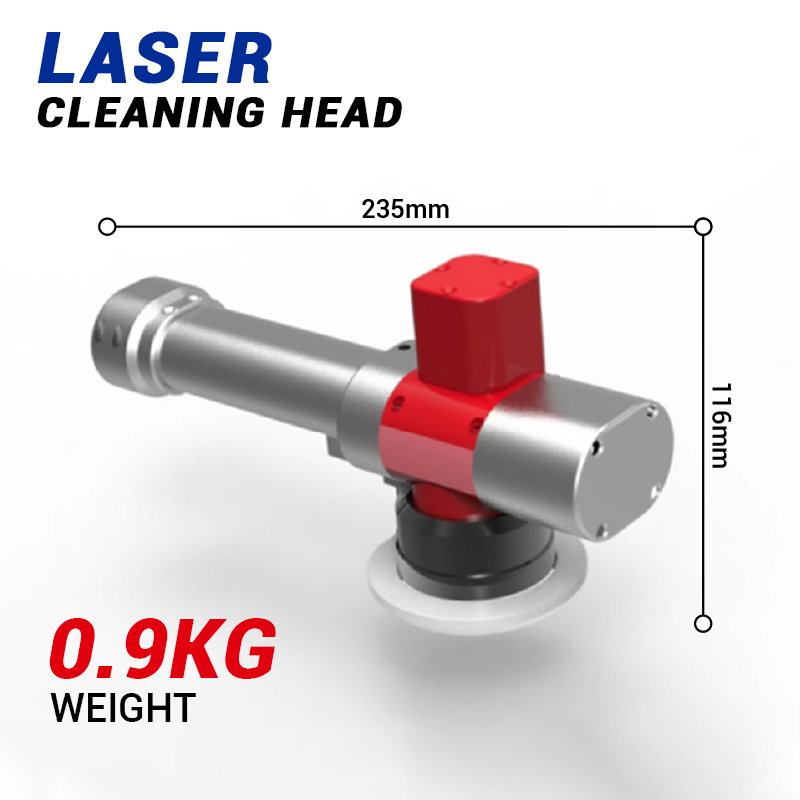

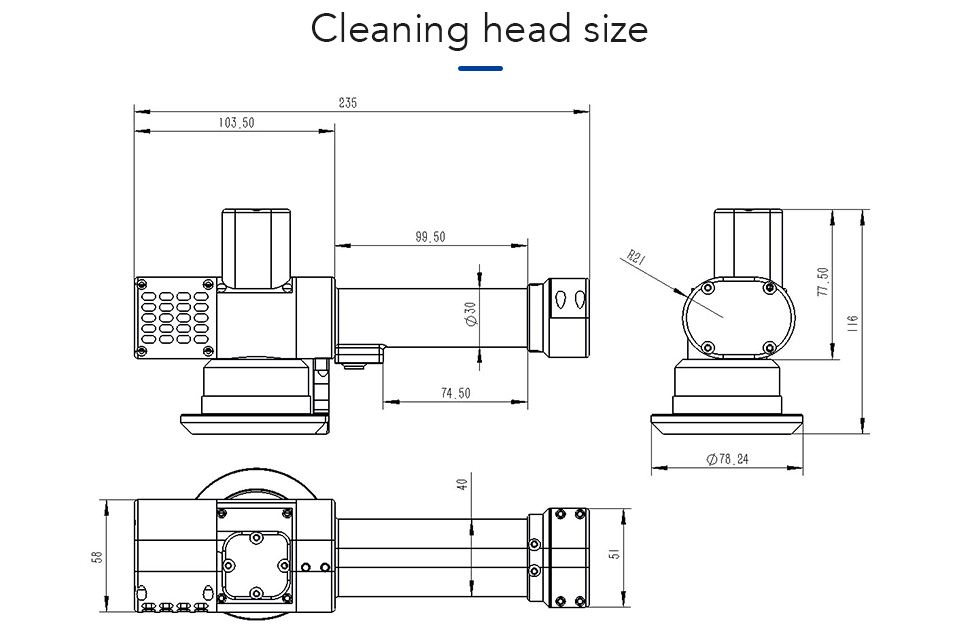

Cleaning headErgonomic design, operation labor intensity is greatly reduced; Easy to operate, can be hand-held automatic cleaning
|
Laser cleaning systemOperation interface provides 8 cleaning modes: linear mode, rectangular mode rectangular mode2, circular mode, sinemode,spiral mode,free mode, ring mode.
|
 |
|

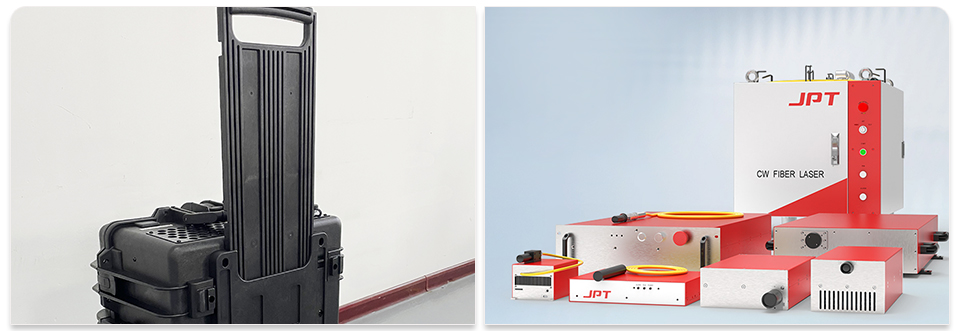

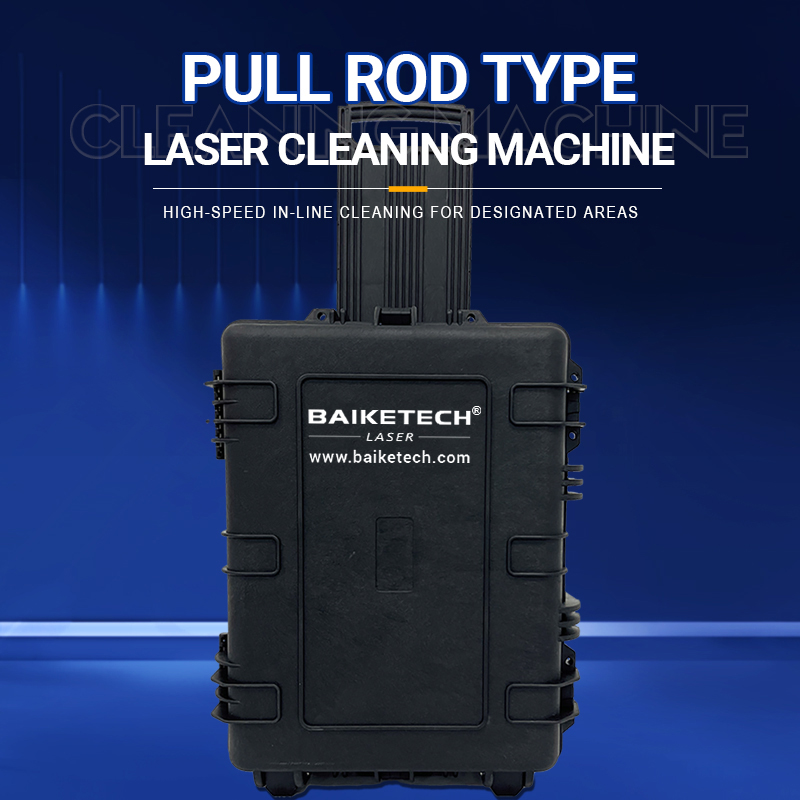

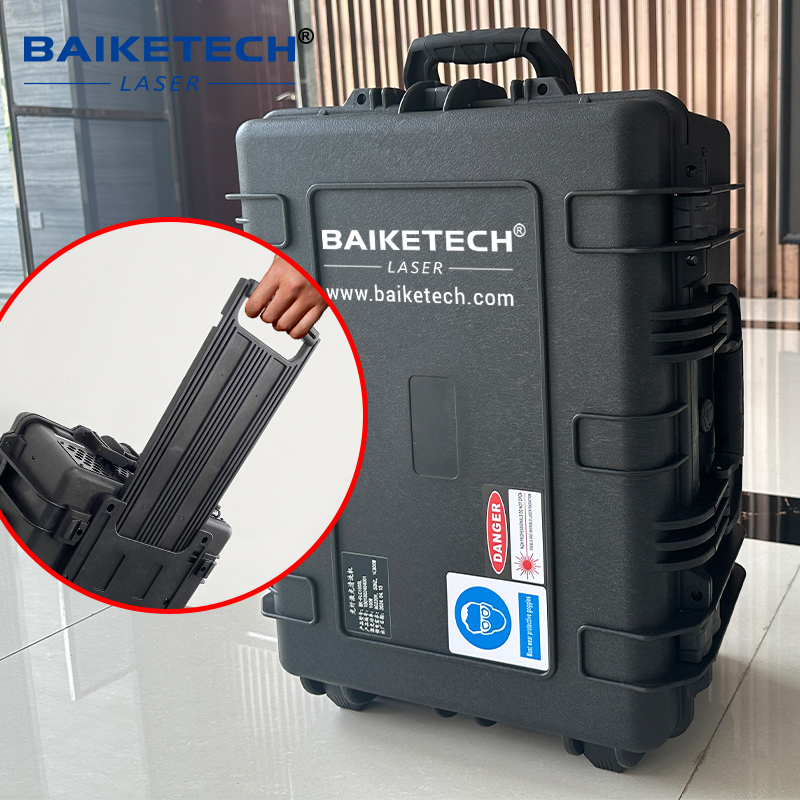

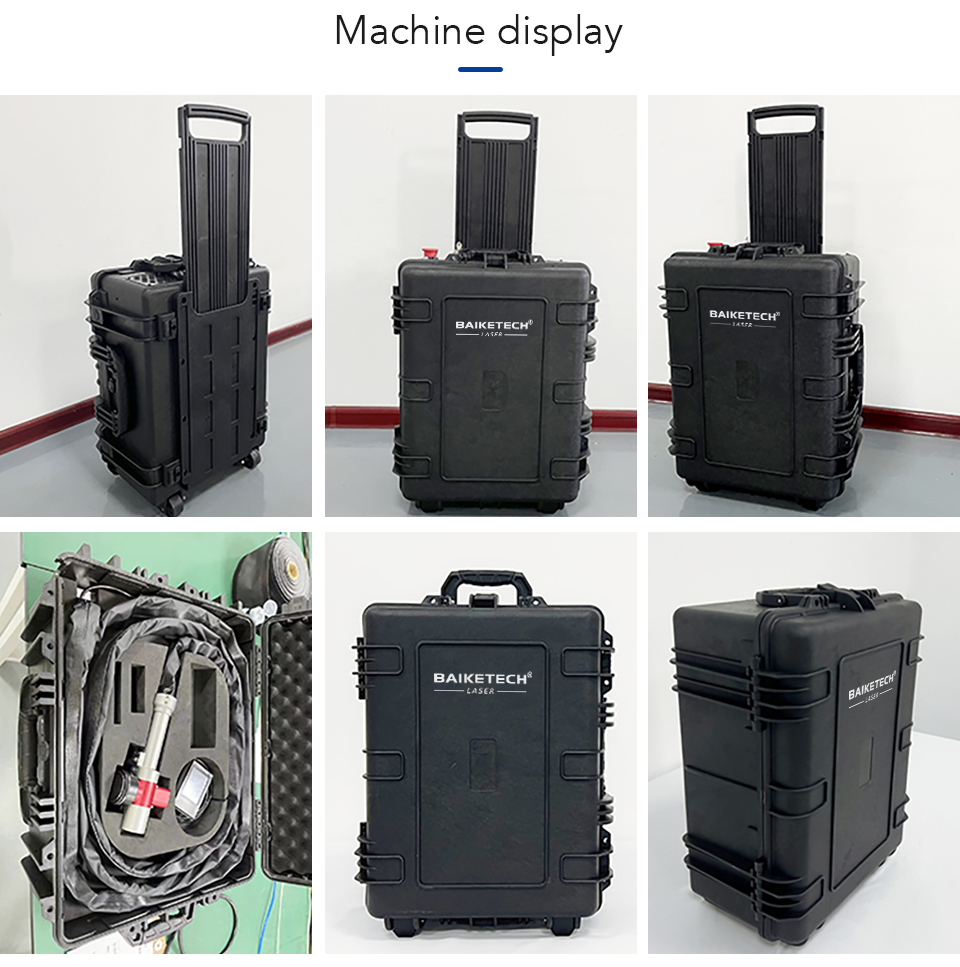

Pull-rod designIt adopts a lever-type design, which is convenient for movement. lt can be easily transferred between different sites and is suitable for use in workshops, repairshops and other places.
|
Laser sourceThe laser has a high electro-optical conversion efficiency and good power stability. Simple structure, long service life and low maintenance cost.
|

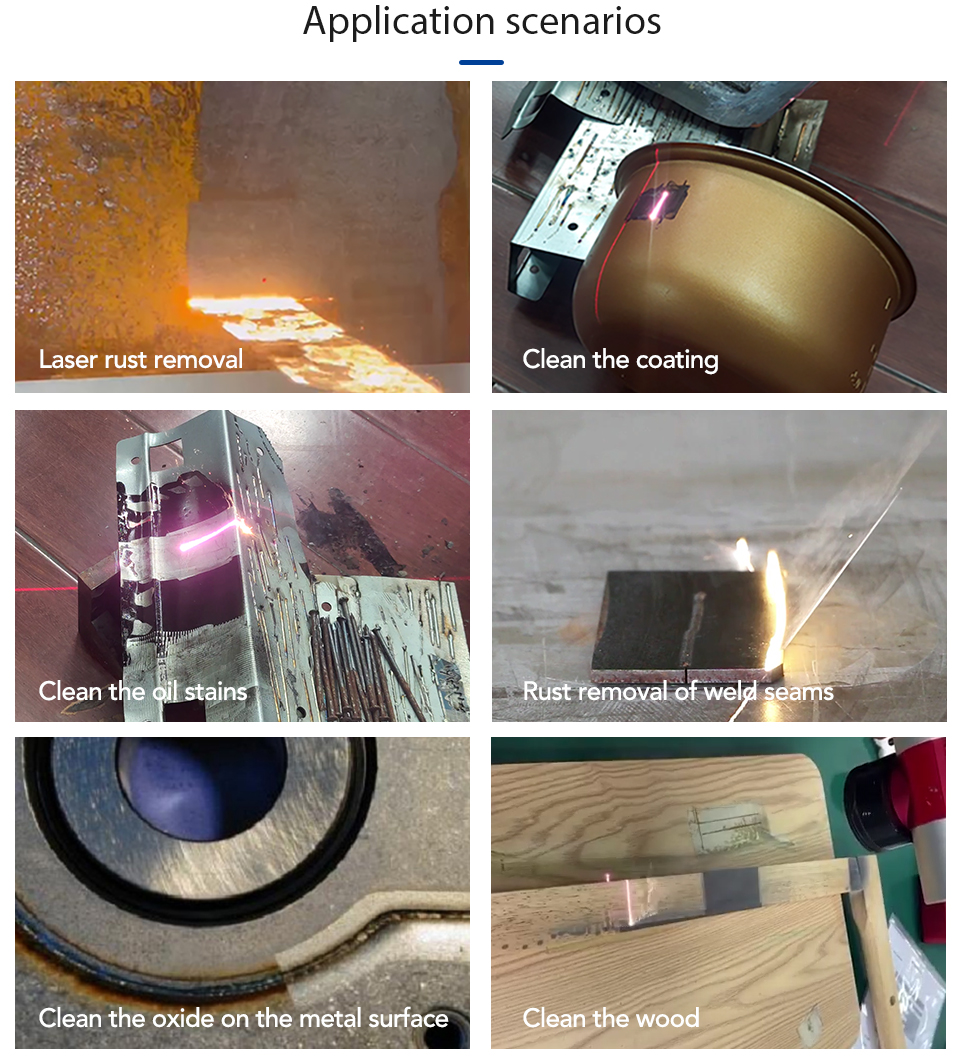

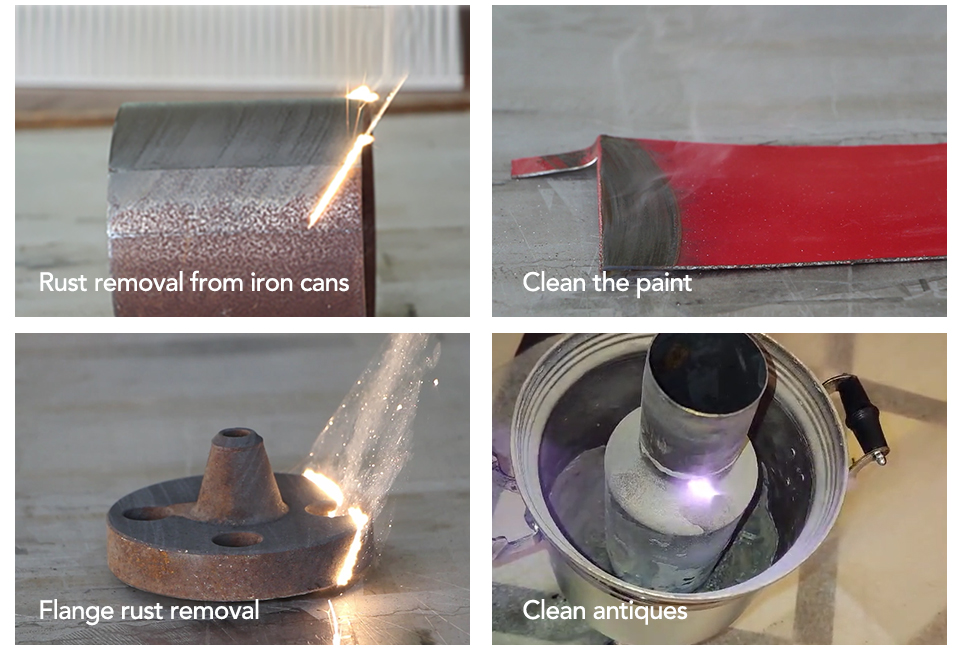

| Application |
|
Portable laser cleaners deliver precise, eco-friendly cleaning across industries. Main Application Areas:
|
| More Choices |
| We also have continuous laser cleaning machines, Pulse Fiber laser cleaning machines, and trolley case laser cleaner. From high-end professional metal rust removal machine to popular and classic laser cleaning machine, we want to fulfill the demand of every client who come to us. There is always one machine that meets your needs. |
 |
 |
| Company Profile |
|
Wuhan Baike Times Laser Technology Co., Ltd. was founded in 2014 as a professional supplier of laser machine, located in Optical Valley of China, has gathered the best R&D, production and marketing teams in the domestic laser industry. More than 100 kinds of industrial laser products, including pneumatic marking machine, laser marking machine, laser welding machine, laser cutting machine, developed by the company's technical team, have been widely used in 3C electronics, semi conductor, new energy (including photovoltaic), metal processing, automobile manufacturing, electric power, textile machinery, fashion FMCG, medical devices, instruments and meters, food processing and other industries. The product quality and service have been highly praised by customers internationally. We have achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises. We've been dedicated to provide our customers with the highest quality, the best cost performance, the most suitable laser equipment. lf you have any needs, please call/mail us directly. All you need to do is just tell uswhat you need, wel provide the most professional services. |
| FAQs |
|
1. Are there any advantages to using a continuous laser cleaning machine over other cleaning methods?
Answer: Yes, advantages include non-contact cleaning which reduces the chance of material damage, no consumables like chemicals or abrasives, less environmental impact since it doesn't use chemicals, and it allows for precise area cleaning which is useful for intricate parts or sensitive areas.
|
|
2.Is there a risk of thermal damage to the material being cleaned?
Answer: There can be a risk of thermal damage if the laser power is too high or if the material is heat-sensitive. However, continuous laser cleaning machines are designed to minimize this risk by having controls to adjust the power and the duration of the laser exposure.
|
|
3.Do continuous laser cleaning machines require special maintenance?
Answer: Yes, like all industrial equipment, they require regular maintenance to ensure optimal performance. This includes cleaning the lenses, checking the laser alignment, and servicing the moving parts according to the manufacturer's specifications.
|
|
4.What safety precautions should be taken when using a continuous laser cleaning machine?
Answer: Safety precautions include wearing appropriate eye protection, ensuring the machine is operated by trained personnel, having a designated working area, and following the manufacturer's instructions for safe operation and maintenance. Additionally, monitoring for potential hazards such as fumes or residual heat is important.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
